How to check whether port mirroring is properly configured?
4.0
- Author:
- IMFirewall Software
- HomePage:
- http://www.imfirewall.us
Port mirroring is required for pass-by monitoring. However sometimes you might still cannot monitor other computers even port mirroring is configured. There have several possibilities:
- Cable connections do not match the mirrored/mirroring ports. For example, port 5 is configured as a mirroring port, but the WFilter computer is connected to another port.
- Both outbound and inbound traffic is required by WFilter. If you only mirror one direction packets, WFilter can not work properly.
- WFilter computer shall be connected directly to the mirroring port.
- Incorrect "ip segment" or "monitoring adapter" settings of WFilter.
- Firewall/anti-virus programs blocks non-local packets. For example, nod32 will block non-local packets, so even port mirroring settings are correct, the mirrored traffic still can not reach WFilter. We recommend you to shutdown your firewall and anti-virus programs to check.
To locate the problem, first we need to confirm whether packets are mirrored to the WFilter computer. It can be checked in a simple way by below steps:
- In "Network Connections", check the "status" of the monitoring adapter:

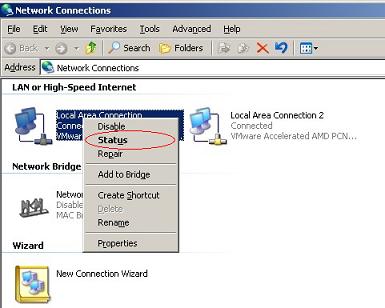

Figure 1
- Upon successful mirroring, the "Received" packets number shall be much larger than the "Sent" packets.

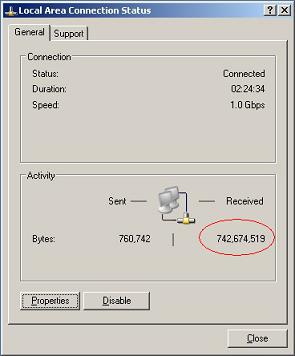

Figure 2
